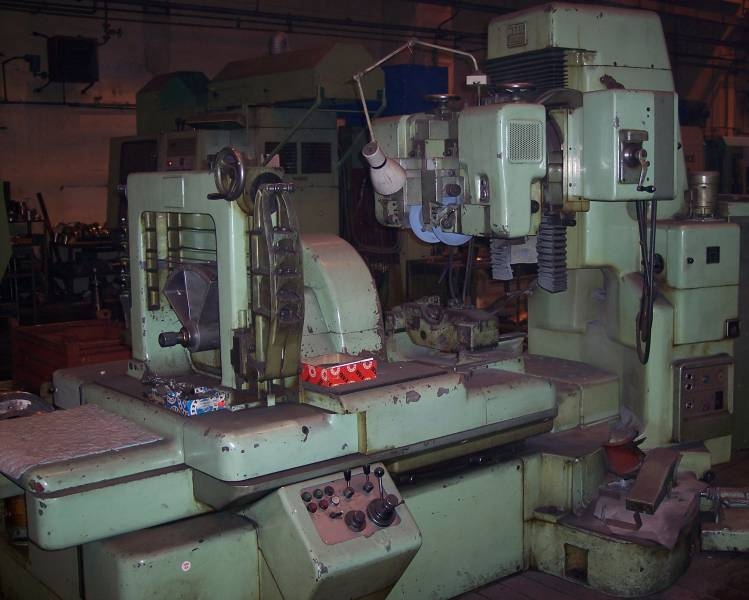

| | Side tooth grinders MAAG work based on hobbing and serve to grinding of both normal and corrected gearing. Hardened and grinded gearings assure with respect to achieved high accuracy of the side and spicing grinding extraordinary operation features, , smooth running and the highest operational lifetime. |
| | | |
| Types Bcare furthermore provided (besides B) with another jig for grinding of either hight fillet (head and root correction) or longitudinal fillet (corredtion in the direction of tooth running) or allows to use both methods simultaneously. |
| | | |
| Roler band holders are arranged on the stand with roller bands in pairson both sides and have either four (types HSS-60) or five (HSS 60/80) stages. |
| | | |
| The machine has to be implicitly connected to the dust-exhaust system.. |
| | | |
| MAAG machine equipment offers to use two ways of grinding: |
| 1) Grinding at 15 degrees or 20 degrees of angle inclination | | |
| - the greatest outer wheel diameter | 820 | mm |
| - the smallest diameter of the spacing circle | 150 | mm |
| 2) Grinding by using 0 degrees. | | |
| - the greates outer wheel diameter | depends on spacing between discs (see table) | mm |
| - the smallest diameter of the spacing circle | 150 | mm |
| | | |
| Gearing modul | 2 till 10 | |
| | | |
| The highest weight of the piece sith the clamping fixture | 250 | kg |
| | | |
| Machine weight: | | |
| type HSS 60-80 | 6200 | kg |
| type HSS 60-80 B | 6400 | kg |
| type HSS 60-80 BC | 6500 | kg |
| | | |
